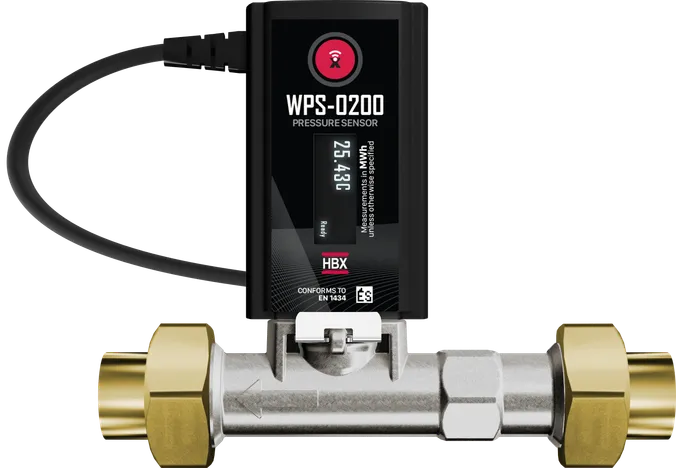

The WPS sensor is a combined pressure and temperature sensor (two-in-one). The sensor is fully compatible with wet, aggressive liquids. The sensor is a lightweight and robust compact flow meter than can be installed in tight spaces vertically or horizontally.
The sensor is suitable for a wide range of applications with a measuring range >10 BAR (145 PSIG).
Flow Rates & Part Numbers
| L/MIN | GPM | Pressure Bar (PSI) | Union Pipe Configuration | HBX Part # |
|---|---|---|---|---|
| 1– 18 | 0.26 – 4.75 | 0-10 (0-145) | 1/2" | WPS-0200-18 |
| 2 - 40 | 0.52 - 10.60 | 0-10 (0-145) | 1/2" | WPS-0200-40 |
| 5 - 100 | 1.32 – 26.40 | 0-10 (0-145) | 3/4" | WPS-0200-100 |
| 10 - 200 | 2.64 – 52.80 | 0-10 (0-145) | 1" | WPS-0200-200 |
Product Features
Hydronic system balancing
Alarm notification for pressure and temperature
Vortex in-flow sensor

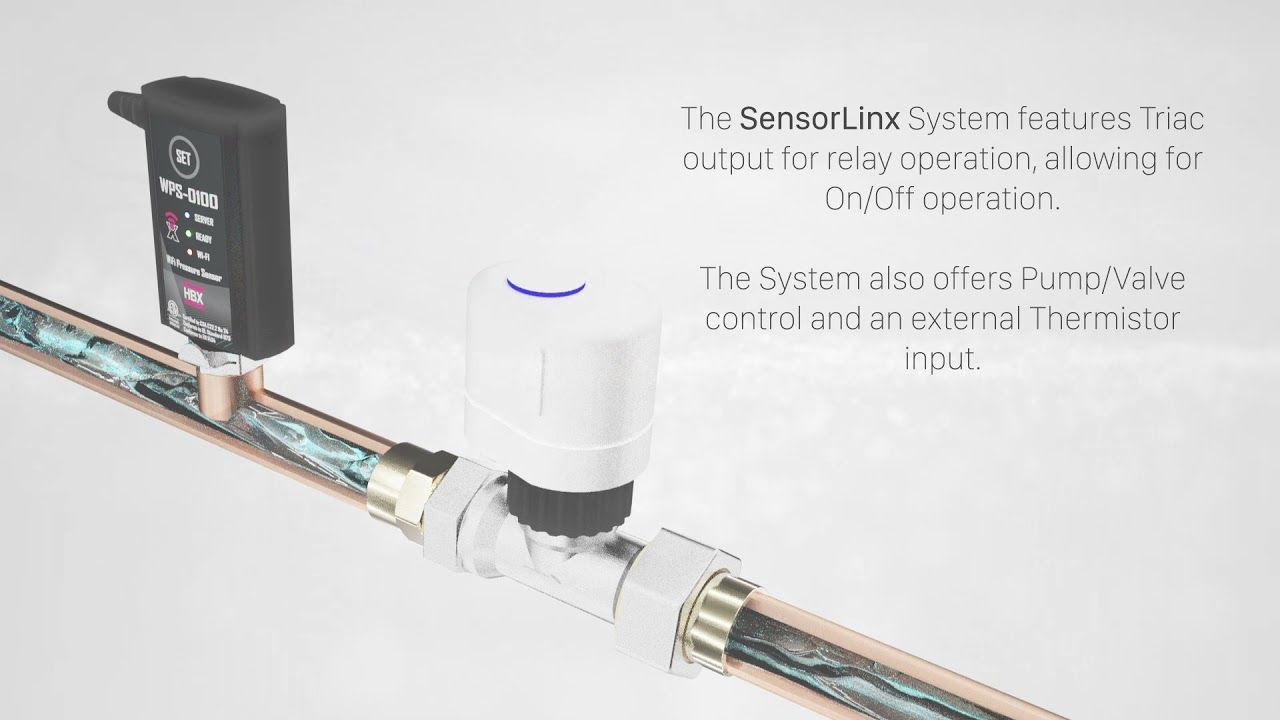

Triac output for relay operation
Manuals & Resources
Stay comfortable.
Stay connected.
With the free HBX SensorLinx™ mobile app, users can control and monitor their boiler system remotely from their smartphone devices with the ability to adjust system parameters, monitor system temperatures, equipment operation status and receive alarm notifications.
