HBX Control Systems
WiFi Enabled SensorLinx Compatible
Where to Buy Product Information

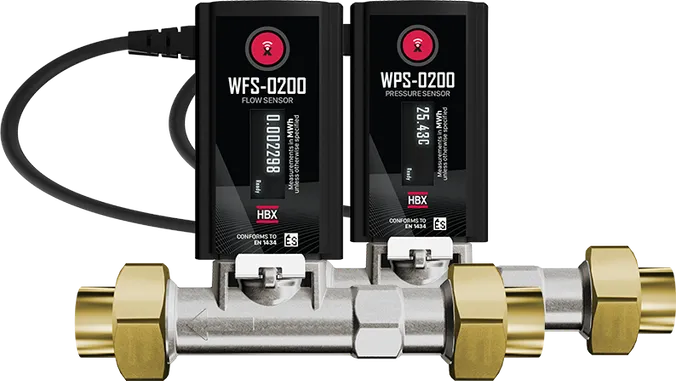

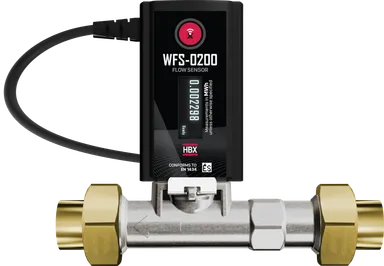

SensorLinx™ is a customizable sensor solution incorporating the WFS Sensor (Wi-Fi Flow & Temperature Sensor) and WPS Sensor (Wi-Fi Pressure & Temperature Sensor). The system includes 2 pre-paired sensors that feature a wireless communication protocol between them that eliminates the need to need for the supply and return piping to be within 2 meters of each other. The system is based on vortex in-fluid sensors rather than other sensing technologies for more precise and accurate sensing calculations with a built-in electronic calculator and data logger via the ThermoLinx mobile app.
Flow Rates & Part Numbers
| L/MIN | GPM | Flow Pipe (Housing) | Union Pipe Configuration | HBX Part # |
|---|---|---|---|---|
| 1.4 – 14 | 0.36 - 3.69 | Composite, Stainless Steel | 1/2" | ENG-0100-14 |
| 3 - 30 | 0.70 - 7.92 | Composite, Stainless Steel | 1/2" | ENG-0100-30 |
| 7 - 70 | 1.84 - 18.49 | Composite, Stainless Steel | 3/4" | ENG-0100-70 |
| 13 - 130 | 3.43 – 34.34 | Composite, Stainless Steel | 1" | ENG-0100-130 |
This product is discontinued. We will continue to support it, but no new units will be manufactured.
Product Features
EN 1434 certification
Residential and commercial tenant billing
Supply and return do not have to be within 2 meters like conventional BTU meters
Graphs calculated BTU’s based on hour, day, week and monthly
External strap on thermistor for simple BTU calculations
Vortex in-flow sensor
Measure up to 106 GPM
NSF 61 Certification
Manuals & Resources
Stay comfortable.
Stay connected.
With the free HBX SensorLinx™ mobile app, users can control and monitor their boiler system remotely from their smartphone devices with the ability to adjust system parameters, monitor system temperatures, equipment operation status and receive alarm notifications.
